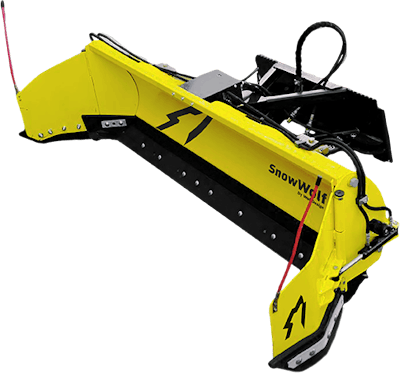

SnowWolf’s new QuattroPlow gives operators the power to efficiently tackle four distinct functions with one piece of equipment. They can do it without leaving the cab or even pushing a button, and no extra electric harnesses or controllers are required in the machine. Operators can also quickly set the plow for a fifth function by leaving the cab to reposition the wing cylinders.
Mark Holman, SnowWolf director and general manager, says the QuattroPlow saves snow removal contractors time and effort because they do not need to connect or remove attachments between functions. “It delivers greater capacity, efficiency, flexibility and maneuverability in everything from tight driveways to massive parking lots. It’s simply four times the plow or pusher of anything out there right now,” Holman says.
How it works. The QuattroPlow’s wings rotate 165° to make it a high-capacity hydraulic snowpusher when they are all the way forward. When the wings are all the way back, it is an efficient straight or angle plow with wings or backdrag plow with significant containment and down pressure. A fifth function, wide-angle plowing, can be achieved in 60 seconds or less by repositioning the wing cylinders on each side of the plow so the wings will only rotate back by 90°. This extends the plow by 23 inches on each end for even greater capacity when straight and angle plowing.
SnowWolf says simple operation is an important selling feature. The plow’s patented “smart valve” gives operators complete control of the wings without removing their hands from the steering controls.
The QuattroPlow is ideal for machines that weigh 6,000 to 14,000 pounds, such as skid steers, compact wheel loaders, and tractors with loaders.
The QuattroPlow is available in widths of 8.5 to 12.5 feet when the wings are in the snowpusher position. With wings in the wide-angle position, that extends to 12’2”.
