New Holland C Series Compact Wheel Loaders

Tier 4 Final compact wheel loaders feature reduced length, width and height for easier maneuverability in restricted spaces

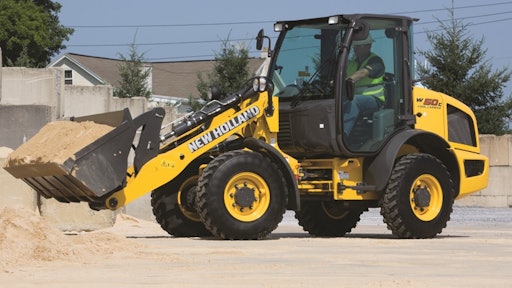

New Holland W50c 55a965974f290 55acf2de5e1c4
Newhollandconstructioncnh 10072470 58f7b2be7a40f 2

New Holland's C Series compact wheel loaders includes the W50C, W50C TC, W80C and W80C HS and are more compact — with reduced machine length and width and lower machine height — than previous models for easier maneuverability in restricted spaces.

  • Z-bar linkage design (W50C, W80C and W80C HS) provides increased breakout force, digging and lifting power
  • Parallel lift path for W50C TC eliminates need for manual correction
  • Tier 4 Final engines; 55 hp (W50C and W50C TC); 70 hp (W80C and W80C HS)
  • New cab design with ergonomic controls; redesigned wide steps; adjustable seat, steering column and armrest
  • Standard LCD display
  • Optional high-flow hydraulics and high-speed option on W80C
  • Optional auto ride control, creep speed and return to dig features
  • Operating height: 154 in. (W50C and W50C TC ); 169 in. (W80C and W80C HS)
  • Dump height: 97 in. (W50C); 93 in. (W50C TC); 105 in. (W80C and W80C HS)
  • Bucket reach: 30 in. (W50C); 26 in. (W50C TC); 33 in. (W80C and W80C HS)
  • Dig depth: 3 in. (W50C, W80C and W80C HS) ; 5 in. (W50C TC)
  • Turning radius: 146 in. (W50C and W50C TC ); 157 in. (W80C and W80C HS)
