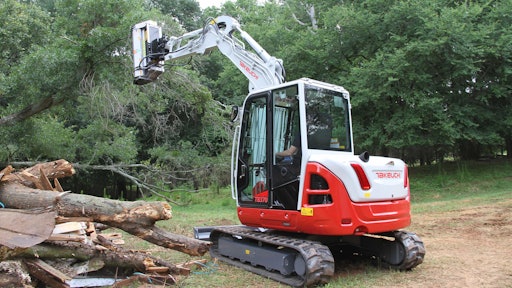

Takeuchi TB370 Compact Hydraulic Excavator

Viable machine for a wide range of customers, including general contractors, landscapers, utility contractors and the rental industry

Tb370 Training Center
Takeuchi Logo 10823023

Despite the challenges faced in 2020 due to the global pandemic, Takeuchi continued to roll out new machines, focusing primarily on changes that would bring the biggest benefits to its customers. Takeuchi recognized an opportunity to develop an excavator in the 7t class that could provide greater capability and performance, a more modern cabin with improved functionality and comfort and unrivaled serviceability.

The most significant changes Takeuchi made when designing the TB370 include a new closed center/load sensing hydraulic system, three auxiliary hydraulic circuits; an advanced 8-inch touch screen multifunction monitor and jog dial control; and Takeuchi’s Fleet Management (TFM) telematics system that allows customers to manage their machine assets remotely.

 Features that make the TB370 appealing to those in the landscape and hardscape industry include a powerful 56.8 hp Kubota turbocharged diesel engine and a primary auxiliary circuit that can deliver nearly 32 gpm, making it fully capable of running mowers, mulchers, and many other high-flow attachments. The TB370 features a spacious cabin with an updated interior that includes one-touch functions; a jog dial to control throttle and a wide range of machine functions; and a touchscreen monitor that can be used to adjust auxiliary flow and attachment presets from the comfort of the operator’s seat.

 Improvements to serviceability include a tilt-forward cabin that provides access to the engine and hydraulic control valve; lockable, overhead-opening engine hood and right-side cover that provide simple access to service and inspection points; and a telematics system (Takeuchi Fleet Management) that can be used remotely to monitor machine vitals, usage, location, and hours.  Each of these features combine to help minimize downtime and maximize time on the job.

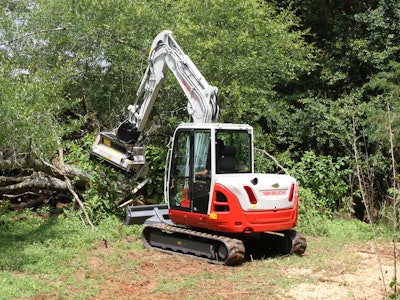

Tb370 Mulching 3

The Takeuchi TB370 compact hydraulic excavator has a feature set that is well suited for the landscaping industry. It includes a load sensing hydraulic system, three auxiliary hydraulic circuits with a high flow primary circuit, and an advanced 8-inch color multi-function touchscreen monitor panel that enables the operator to control the radio, A/C and heat, and easily set-up a wide range of hydraulically driven attachments.

  • Tier 4 Final 56.8-hp Kubota V2607-CR-TE5B turbocharged diesel engine with 157 ft.-lb. of torque
  • High flow primary auxiliary circuit, up to 31 gpm
  • Dedicated coupler circuit
  • Fully redesigned cabin with intuitive controls that includes jog dial and one touch controls
  • Operating weight: 14,793 lb.
  • Dig depth: 13 ft. 4.8 in.
  • Maximum reach: 21 ft. 11.3 in.
  • Bucket breakout force: 14,613 lb
  • Takeuchi Fleet Management (TFM) telematics system
