A Reduced Machine Length and Added Maneuverability

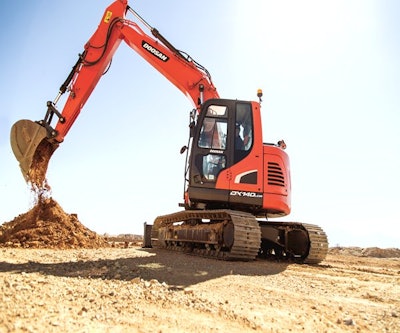

Doosan designed its DX140LCR-5 crawler excavator with a shorter tail swing, allowing operators flexibility in minimal space without sacrificing performance. The excavator further provides:

• A digging reach of 27 feet, 11 inches and digging depth of 19 feet, 7 inches.
• A bucket digging force of 24,471 pounds of force and an arm digging force of 13,288 pounds of force.
• A loading height of 23 feet, 2 inches and an operating weight of 34,987 pounds.
• Power+, power, standard and economy power modes.
• Dig, lift, breaker and shear work modes.
• A 7-inch liquid-crystal display screen, allowing operators to monitor excavator parameters, while viewing the rear-view or optional side-view camera image.
• An automatic shutdown to help owners save fuel, with the flexibility to configure the idle time from 3 to 60 minutes.
• A 113-HP engine.
• An extra-sturdy frame and reinforced superstructure design.
• Permanently sealed and lubricated track links.
