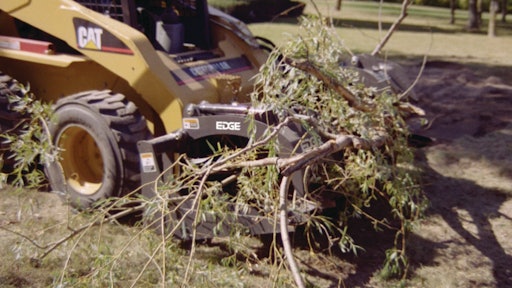

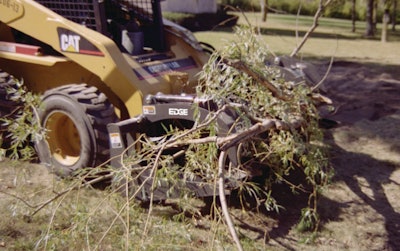

Heavy-Duty Brush Root Grapples

Brush Root Grapples Handle Awkward Debris

Heavydutybrushrootgrapples 10157431

CEAttachments Inc. has announced the addition of New Edge Heavy-Duty Brush Root Grapples to their lineup of Grapple attachments for skid steer loaders.
These Brush Root Grapples are designed for handling awkward debris such as brush, tree stumps, logs, loose hay or straw and more in agricultural, landscaping, farming, construction, demolition, job-site cleanup and many other applications.
• Up to 50% greater clamping force over previous models
• Dual, independent grapples to handle uneven loads
• Cushioned and sleeved heavy-duty cylinders and cylinder/hose guards protect components
• Standard load-check valve ensures positive clamp force
• 1-1/4" x 24" grapple pins reduce torsional force
• Hardened 1-1/4" cylinder pivot pins increase durability
• 1/2" thick tines made of 100K PSI yield strength, spaced 6" apart to allow small debris through
• Throat opening measures 40" with the grapple open, 16-1/2" closed
• Overall depth of 39" and comes in widths of 72", 78", 84" and 90"
ceattach.com
