Towable Hydraulic Earth Drill Provides Powerful Drilling and Simple Transport

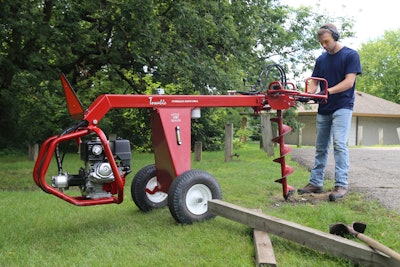

Little Beaver’s Towable Hydraulic Earth Drill combines safe and powerful drilling with hassle-free operation and transportation. The design reduces operating weight and requires less than 20 pounds of force to pivot into digging position. The frame eliminates torque for safe one-person drilling. The rig can be conveniently transported using a removable towing hitch, making it a convenient tool for fence and deck building, sign installation, rental and park and recreation departments. Additional features include:

• An 11-horsepower Honda engine.
• A 2,700-psi hydraulic system that provides up to 300 foot-pounds of torque and an auger speed of 150 rpm.
• A 34-inch width that allows access through tight spaces for drilling in locations inaccessible to skid steers and tractors.
• 16-inch semi-pneumatic tires and auger lock that makes it easy for one person to maneuver the drill around a jobsite and pivot into position without damaging delicate turf or landscapes.
• A two-position handle that rotates 180 degrees to drill near buildings, walls and other structures.
• A 20-degree auger tilt that makes it possible to drill vertically in uneven terrain.
• A built-in pressure relief valve that releases if the drill reaches a certain hydraulic pressure, stopping the auger and protecting the operator from potential injury.
• Compatibility with all Little Beaver 36- and 42-inch standard, carbide and rock snap-on augers.
• Augers that come in 1.5- to 18-inch diameters.
• A heavy-duty auger available in 6- to 16-inch diameters.
• Spring-loaded snap buttons that secure augers to the drill head and eliminates the need for tools.
• A two-year warranty.
