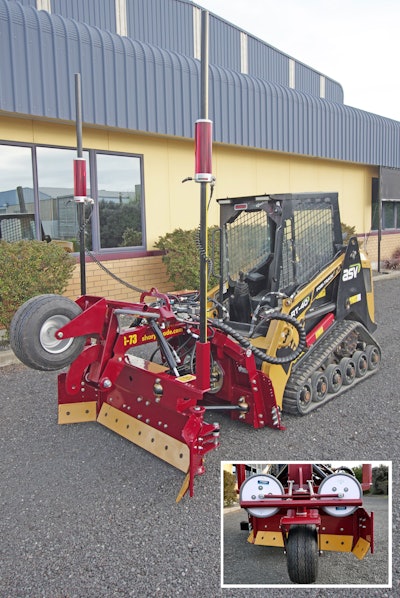

SharpGrade's G73 Grader Blade has been engineered specifically for 30 – 50HP compact track and articulated wheel loaders. The G73 fills a long-standing gap for contractors seeking professional-grade accuracy on small, challenging job sites, while having the capacity to grade open areas quickly.
Fully articulated with the wings closed, the G73 measures just 45.5-in. (1.15m), making it one of the most compact graders on the market, yet opens to 73 in. (1.85m) when open, thanks to its large hydraulic side wings. Multiple hitch options are available to suit the most common models in the compact range. Rotation Sensor, IMU mounts & external data ports are available to plug and play most 3D solutions, including GPS & LPS.
Built to the same uncompromising standards as SharpGrade’s full-size models, the G73 delivers exceptional grade accuracy, rapid setup and removal, zero cross-coupling for unmatched responsiveness and the ability to grade in reverse — all in a compact, lightweight frame ideal for urban infill, landscape grading, paving, and residential construction.
“The G73 is designed to bring pro-level grading precision to jobs where space and machine size is restricted,” says Rodney Sharp, Director of SharpGrade. “It’s an ideal solution for contractors, landscapers, and hire fleets who need to get in, get out, and get the job done right the first time. The ability to simultaneously articulate the blade and hydraulic side wings forward & reverse makes it ideal for grading around service pipes, confined areas, but also narrow linear work such as sidewalks, cycle ways, kerb and gutter etc, significantly reducing manual raking. Being able to grade in reverse removes track marks, improves accuracy and increases productivity.”
QuadGrade Power Pro has all functions integrated into the touch screen with no wiring on the base machine, an industry first. Swapping between base machines becomes a breeze: a true interchangeable, plug and play solution, ideal for rental companies and large fleet operators with multiple machines. With built in, tamperproof hour meter, real time diagnostics, remote technician access, linked override and all functions on one screen, it is the most intuitive, operator friendly system available.
Advantages of the SharpGrade G73:
- Sealed, shielded and lifetime lubricated bearings never require greasing.
- SharpGrade’s patented QuadRod 3 linkage design keeps the blade parallel throughout movement to maintain equal height between front & rear blade
- The Zero Cross Coupling design gives the operator the ability to operate one side of the blade without influencing the position of the other.
- Compact Design — Slim frame width, tight turning radius & hydraulic side wings allow access to spaces larger machines can’t reach.
- Retracting Front Wheel offers an open 6-way blade with side wings to blade through piles, short transport length with the shortest length to manoeuvre through tight spaces.
- QuadGrade power Pro allows operator to control all functions directly from the touch screen while in auto mode, no additional buttons or wiring required on the base machine.
With its low operating weight and powerful performance, the G73 is particularly well-suited for equipment rental companies, who can now offer a grading solution with 2D or 3D machine control options, that’s operator-friendly, rental friendly, transportable, and built to withstand jobsite abuse.
