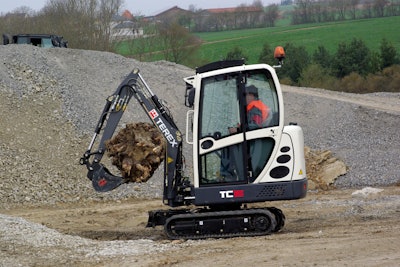

TC16 and TC29 Compact Excavators

Terex says its TC16 and TC29 compact excavators are designed to enhance jobsite productivity, efficiency and cost-effectiveness, all while allowing operators to work with precision and power with enhanced capacities of their Tier 4 Final Mitsubishi diesel engines. Key features and specs include:

• TC16 weighs 3,800 pounds and offers a dig depth of 7'3" and maximum reach of 12'10"
• TC29 weighs 6,450 pounds and offers a dig depth of 9'10" and maximum reach of 16'5"
• TC16 bucket capacity is 0.74 to 3.2 cubic feet and the TC29 has a capacity range of 1.34 to 3.88 cubic feet
• Equipped with broad rubber tracks to provide traction and low ground pressure; 3.6 psi on the TC16 and 3.9 psi on the TC29
• Engineered with load-independent flow distribution (LUDV)
• Equipped with an auto-idling system to help improve fuel economy while lowering engine noise when not in use
• The Knickmatik boom system allows operators to work closely alongside walls or other existing infrastructure, as well as drive parallel to a trench or drain while working on it without turning the superstructure
• Spacious ergonomic cab with increased visibility, end-position cushioning on units help reduce vibrations to increase operator comfort
• Fingertip controls (electro proportional) on right joystick, actuation via rollers, come standard on both units providing additional control for work attachments, including buckets, grabs, hydraulic hammers, cutting wheels and augers
