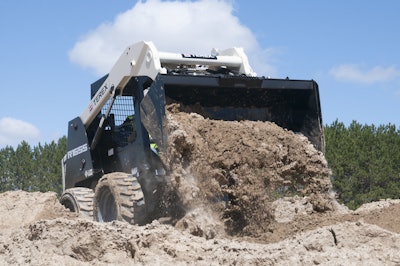

The Terex R165S Skid Steer Loader features a radial lift path, which means that the loader arms raise in an arc pattern. Terex says that the R165S excels at digging and grading applications due to the radial lift.
The drive pumps and motors on these loaders are performance matched to provide operators with the optimum amount of hydraulic horsepower on every task. Terex says that its load-sensing hydraulics to ensure that fuel and energy are not wasted on surplus hydraulic power, so operators can push material, dig, grade and drive-through the tough jobsite conditions, yet conserve power when requirements are less demanding.
- Equipped with a 50-hp Perkins diesel turbocharged engine with load sensing, variable flow hydraulics
- Has an operating capacity of 1,650 pounds at a 50% tipping load (3,300 pounds)
- The R165S weighs 6,605 pounds and can achieve 116 inches of lift height and nearly 22 inches of reach
- The ground clearance is 10.5 inches and 28.4° rear angle of departure, which is designed to improve the R165S’ ability to traverse soft, uneven terrain
- Loader arms on the Terex models are designed to easily accommodate over-the-tire steel tracks
- Loaders run cool, which allows operators to work longer in hot, humid environments
- Features a 25-gallon fuel tank
Terex says for quick cycle times, a powerful drive train with optional 2-speed transmission propels skid steer loaders to the fastest top speeds in their class—up to 12 mph.
