John Deere Small Frame Tier 4 G-Series Loaders

John Deere has upgraded its small frame G-Series skid steers and compact track loaders

Jd Small Frame G Series Upgrades 2
John Deere Construction Logo 10862550

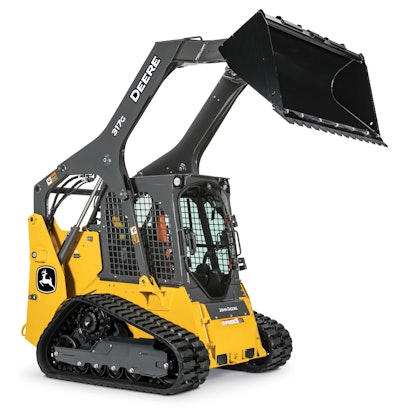

John Deere Tier 4 Final G-Series skid steers (312GR, 314G, 316GR, 318G) and one compact track loader (317G)were released in 2016 and upgraded in 2019.

  • 51- to 65-hp Yanmar Tier 4 Final engines and hydraulic powertrains provide maximum pushing power and boom and bucket productivity
  • 1,550- to 2,124-lb. rated operating capacities
  • Vertical lift design provides all-around visibility with clear sight lines both above and below the boom
  • Radial lift option offers a one-man boom lockout system for safety that can be activated from within the cab
  • Optimized boom design that provides lifting heights over 10 ft. on the vertical lift models (314G, 317G, 318G)
  • 21% increase in breakout forces on radial lift models (312GR, 316GR)
  • 316GR, 318G and 317G offer 24% more engine power and all models provide 11% additional fuel capacity over previous models
  • Skid steer economy models 312GR and 314G purpose built for simplicity, reliability and durability
  • Higher performance 316GR and 318G models offer two-speed, air conditioning, electrohydraulic (EH) joystick controls, an enhanced lighting package and a self-level and ride control combination with shock-absorbing boom cylinders
  • Choice of standard foot and hand controls, optional hands-only controls or enhanced (EH) joystick controls on the 316GR and 318G
  • Redesigned manual control levers with improved ergonomic grips
  • Oritected auxiliary hydraulic lines run within the boom
  • Integrated 4-point-tie-down system
  • Optional rearview camera
  • Bluetooth radio option
  • Color-coded fluid fills and key filters
