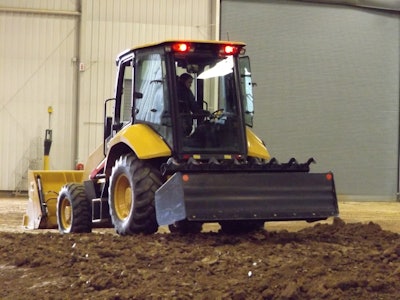

The 14,150-lb. 415F2 Industrial Loader Tractor combines the basic design of the Cat 415F2 backhoe-loader — including most of the frame, engine, transmission and axles — with purpose-built components designed specifically for industrial-loader applications, such as new pilot controls, three-point hitch and an available box blade scraper with reversible wear plate developed for the skip-loader market.
- 72-net-hp (peak) Cat C3.4B Tier 4 Final engine does not require diesel exhaust fluid
- Standard-shift, four-speed transmission with quick-reversing, power-shuttle feature
- Standard four-wheel-drive system (mechanical front drive) can be used in two-wheel drive with four-wheel braking
- Single-tilt or dual-tilt rear hitch with shortened hitch arms for optimum grading performance and a non-metallic wedge system to control hitch sway
- Load-sensing implement hydraulic system with a variable-displacement piston pump produces a maximum flow of 35 gpm at a relief pressure of 3,336 psi
- Standard three-function loader valve uses reliable mechanical controls
- Five-function valve for the available box blade scraper uses low-effort, pilot-operated controls, plus the rear valve provides a float function
- Differential lock can be activated with a floor-mounted button or button on the loader-control lever
- Available in canopy or cab configurations and in 255-, 530-, and 1,015-lb. front counterweight configurations (optional 198-lb. rear counterweight)
- Available with either cellular- or satellite-based Product Link telematics system, passcode-enabled security keypad, rear hand throttle, ride control system and more
