ASV MAX-Series RT-135/RT-135 Forestry Compact Track Loader

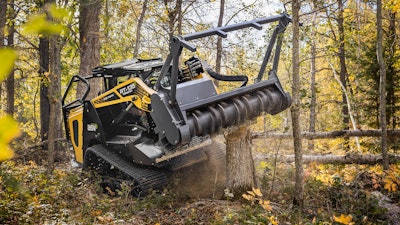

ASV has developed its most powerful compact track loader, the MAX-Series RT-135/RT-135 Forestry (RT-135F) Posi-Track loader. The 11,265-lb. RT-135 version is suited for high-intensity applications and high-flow attachments in a variety of industries, including dirt work, general construction, landscaping, snow clearing and more. Outfitted with forestry-rated guarding and safety features, the 12,990-pound RT-135F is targeted for brush cutting, mulching, land clearing and other high-flow applications.

Both configurations are powered by a 132-horsepower Cummins engine and feature a 50-gpm maximum auxiliary flow and an oversized auxiliary pump capable of 66 gpm. The added pump flow enables the loader to run high-flow attachments such as mulchers at full speed while moving the loader without slowing down the tool.

• Feature rated operating capacities of 3,535 and 4,150 pounds (35% of tipping load), a 10.4-ft. lift height and 10-mph top speed
• RT-135F includes a 50-gpm mulching head, frameless door with 3/4-inch polycarbonate, built-in limb riser, roof escape hatch, heavy gauge steel hoods, guarding around the light and radiator and more
• 52-gallon fuel tank for all-day operation
• Standard LED lighting, optional side lighting and new taillights
• Roomier, high-pressurized, all-weather cab with one-sided lap bar for easier exit and entry and customizable seat and arm rests
• Include advanced, customizable controls, 7-inch touchscreen display, Bluetooth radio and dual throttle option
• Upgraded drive control system provides smoother, more responsive controls that can be adjusted to speed modes matching operator experience level and preference
• Adjustable high flow and flow sharing options
• Upgraded undercarriage with redesigned torsion axles that are 20% stronger and reinforced wheel hubs and bearings
• Dedicated frame includes 15 inches of ground clearance
• Posi-Track system features a flexible track and an open-rail and internal positive drive-sprocket undercarriage for more traction, longer wear life and faster, more convenient undercarriage cleaning
• RT-135F’s 20-inch-wide tracks enable a 4.6-psi ground pressure
