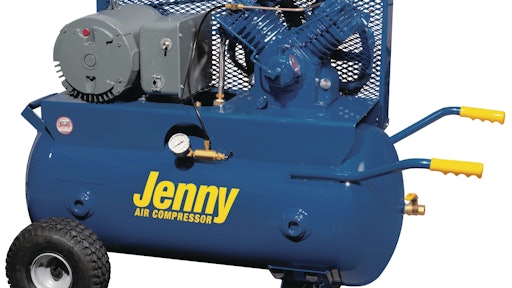

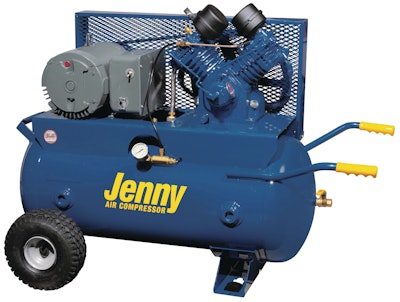

The W5B-30P two-stage, electric-powered compressor from Jenny Products is a wheeled portable unit designed to produce high air flow while meeting the demands of tough jobsites. The W5B-30P includes a 30-gallon air tank and features Jenny's "W" pump, a four-cylinder, two-stage pump with long piston strokes for producing large volumes of air at high pressure ratings. It delivers 18.1 CFM at 100 PSI or 17.9 CFM at 175 PSI.
• Belt-driven by a 5-hp electric motor, which requires a 230-volt, single-phase electrical source
• Directional air shroud and a large flywheel for keeping pump temperatures low
• Professional-duty "Ultimate Blue" synthetic pump oil protects the unit's pistons, crankshaft, bearings, rings and cylinders through a splash lubrication system
• Compressor's thermal overload protection helps prevent costly damage to the motor
• Two fully pneumatic tires and convenient lifting handles are integrated into opposite ends of the compressor's frame
• Equipped with a manual tank drain, safety relief valve, large canister intake with replaceable filter elements, special unloading valves, protected fittings, and tank, regulator and outlet pressure gauges
