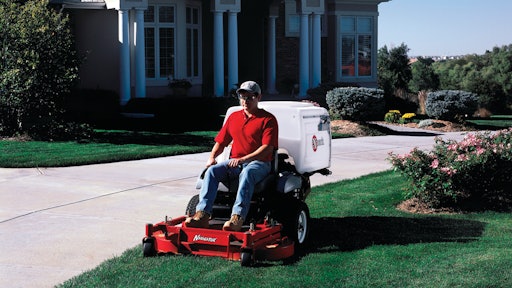

Navigator Dedicated-Bagging Rider

Exmark says its Navigator dedicated-bagging rider is designed to offer an enhanced-control feel with reduced-control effort, allowing for increased mowing precision and overall productivity, and a reduction in operator fatigue. The 2013 Navigator incorporates Exmark’s latest hydro-drive technology, including new, high-performance hydro motors and new reduced-friction hydro pumps. The Navigator’s 4 5/8-inch deep rear-discharge deck features a large blower to pull through more air and provide enhanced deck flow-through and cut quality. A powered dump system is available for 2014 that allows the operator to dump clippings quickly from the driver’s seat.

• Available in 42- and 48-inch deck widths
• Gear-driven spindle assembly for enhanced durability
• Fill-reduction system allows user to switch from dedicated bagging (100% bagging) to fill-reduction mode (75% bagging/25% mulching)
• Torsion-spring design on fingertip controls designed to provide an optimal balance of spring tension and responsiveness, giving operators smoother, more-precise control, with 35% less required pressure input on the controls
• Large 9.5-bushel (76-gallon) collection hopper features an Exmark-exclusive baffle design intended to more evenly distribute clippings from rear-to-front
• Kohler Command CH640 or Command EFI ECH730 V-Twin engine options
• Gear gearbox assemblies independently sealed at each box to prevent cross-contamination or loss of lubricant
• 3/8-inch hardware connects all gearboxes and shaft tubes
• Standard high-back Elastomeric Vibration Control (EVC) seat
• Lazer Z-style hour meter module and harness for improved on-board diagnostics
• 2013 custom-ride suspension seat option designed for increased operator comfort and reduced fatigue
• Optional accessories include: 48-inch snow blade, 44-inch snow blower, mulch kit, light kit, auto door-open kit and dump tubs
