Custom-Built Trailer

Custom-Built Trailer Available to Public

Custombuilttrailer 10157257

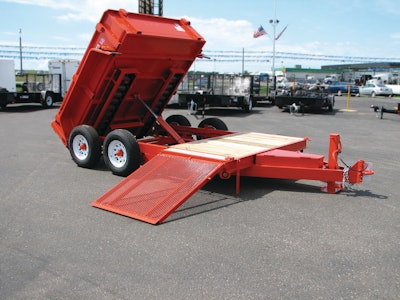

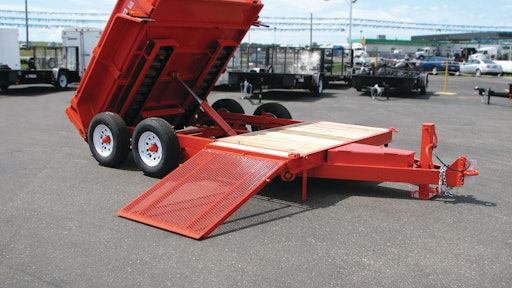

Felling Trailers' custom-built FT-10 DT HD-SP was created to meet the needs of one customer but us now available for all. The trailer consists of an 8' hydraulic dump box with a 42" wide by 96" long stationary platform in front of the dump box with a total deck length of 12'. The stationary platform is flush with the frame on the outer sides of the trailer, to comfortably fit the Mini Track Loader along with its attachments, and has a ramp lock in place at a 90º angle. The ramp is a 48" long by 42" wide flip-up ramp, which is reinforced under the track footprint for loading with spring assist to provide ease and safety in raising and lowering of the ramp.
• 6,000-pound axles and electric brakes
• ST225/75R15 LRD radial tires
• 6 hole white mod wheels
• Adjustable lunette eye (standard with adjacent 2-5/16" ball coupler)
• Stationary Platform made of pressure-treated wood deck
• Dump Box with 10-gallon steel floor, 20" high 12-gallon sides with stake pockets
• Single hydraulic cylinder (14' decks come with twin hydraulic cylinders)
• Double rear doors with spring latch
• 12,000-pound drop-leg jack (standard with 7K Drop-Leg Jack)
• 24" loaded deck height
