Versatile 50-Ton Trailer with In-Deck Winch Hauls a Variety of Equipment

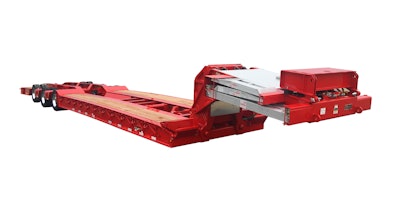

Talbert Manufacturing designed its 50CC-BH 50-Ton Bus Hauler trailer with an in-deck winch so users can load equipment from either the front or rear of the trailer. According to the company, the 50CC-BH also boasts:

• A 50-ton capacity rating for hauling a wide range of oversized equipment, including buses, excavators and Class A trucks, and ideal suitability for hauling equipment with low clearance and long wheel bases, such as graders.
• Rollers and a snatch block that allow users to pull equipment from either end of the trailer using the 20,000-pound planetary in-deck winch, which can be operated via remote control, eliminating the need for additional people when loading inoperable equipment.
• A 22-foot, 6-inch lower deck length, plus a 20-foot, 5-inch rear bridge to create a 43-foot load base that provides ample space for hauling large equipment.
• A 21-inch deck height and a 24-inch flip-up gooseneck that increases the unit’s 84-inch swing radius to 108 inches, allowing the unit to be used with both three- and four-axle trucks, and keeps the trailer within the 53-foot overall length limit when running empty, saving permit costs.
• Extra steel in the main and side beams of the deck, as well as the gooseneck and rear axles to achieve a 50-ton capacity rating without significantly increasing weight.
• Construction from heavy-duty T-1, 100,000-PSI minimum yield steel for durability and longevity.
• Valspar R-Cure 800 paint to prevent corrosion.
• Availability with heavy-duty, 10-foot removable aluminum ramps, which can be stored in compartments at the trailer’s gooseneck.
