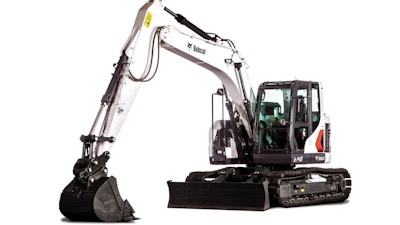

Bobcat E145 Excavator

Bobcat Company is expanding its excavator lineup to include a 14-metric-ton excavator – the new E145.

The turbo-charged E145 is ideal for heavy digging and lifting operations on commercial and residential building sites, underground utility applications and road and bridge projects. Featuring a reduced tail swing design, the E145 offers great maneuverability in tight jobsites, enabling contractors to confidently work around obstacles.

• Turbo-charged non-DPF engine provides consistently high torque levels, regardless of elevation
• Four selectable power models allow E145 operators to adapt to different projects
• Power-boost button temporarily increases hydraulic power, when operators need to break through hard ground.
• Can be equipped with an optional dozer blade for improved digging stability and leveling ability
• D-channel design of the E145 upper structure frame adds strength to better withstand side impacts and protect components
• Hard, wear-resistant wear plates at the attachment connecting pins eliminate side play for extended service intervals on bucket pin-up points
• Offers several features that help protect the machine from theft or vandalism, including passcode protection, a master battery disconnect, lockable panels and lockable fuel fill point
• Pressurized cab features a seamless sound-isolating seal to keep sound levels optimal inside operator station
• Other comfort features include an air suspension seat, a premium heating and air-conditioning system, an easy-to-read 7-inch LCD screen, and standard rearview and sideview cameras
• Access panels open wide and provide room to reach the top side of the E145 engine and a hinged belly pan allows access from the bottom

Quick Specs

• Rated Horsepower (Net): 115 hp
• Operating weight: 34,987 lb.
• Bucket capacity (Heaped, ISO/SAE): 0.55 yd3
• Arm digging force: 13,228 lbf.
• Rated lift capacity*: 19,270 lb.
• Reach: 27 ft. 11 in.
• Dig depth: 19 ft. 7 in.
• Maximum dump height: 23 ft. 2 in.
• Width: 8 ft. 5 in.
• Tail swing type: Reduced

*Over front, ground level, 10 foot reach
