Milwaukee Tool QUICK-LOK attachment system

With versatility to complete a wide range of applications, users can swap between attachments for use on the M18 FUEL Power Head.

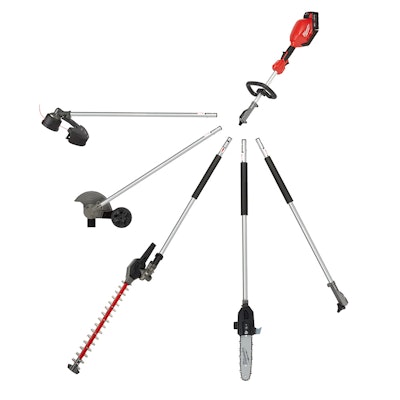

Quik Lok Attachment System Family A
Milwaukee Tool logo 5759816db0cee

Milwaukee Tool QUIK-LOK attachment system is made up of multiple attachments including a string trimmer, edger, pole saw, and hedge trimmer for use on the M18 Fuel Power Head. The QUIK-LOK system utilizes advanced cordless technology to deliver best-in-class power and run-time for landscaping and trade professionals. The system also achieves instantaneous throttle response while being up to 2 pounds lighter than similar units on the market. Users can enter the QUIK-LOK attachment system through the M18 FUEL string trimmer w/ QUIK-LOK or M18 FUEL 10 inch pole saw w/ QUIK-LOK. Once installed in the QUIK-LOK Attachment System, users can easily add on any additional attachments they need, when they need them.


M18 FUEL string trimmer with QUIK-LOK (also available as attachment)

  • Power to clear thick brush, reaches full throttle in under one second.
  • Hour of run-time per charge.
  • Adjustable 14 to 16-inch cutting swath.
  • Easy load trimmer head.
  • RPM: 0-4,900/0-6,200
  • Trigger: Variable Speed
  • Feed System: Bump Feed
  • Length: 73.6 inch
  • Weight: 12.3 lbs


M18 FUEL 10 inch pole saw with QUIK-LOK (also available as attachment)

  • Up to 150 cuts per charge.
  • 3-foot extension included for farther reach.
  • Bar Length: 10 inch Oregon bar and chain
  • Chain Gauge: .043 inch
  • Chain Pitch: 3/8 inch Low Profile
  • RPM: 0-4,600
  • Length: 80 inch
  • Weight: 12.7 lbs


M18 FUEL QUIK-LOK edger attachment

  • Built with a high-strength metal alloy guard and skid plate to protect the gear box.
  • Mud flaps help prevent dirt and debris kick-back.
  • Blade Size: 8 inch with adjustable wheel for control of blade depth.
  • RPM: 3,900
  • Length: 38 inch
  • Weight: 5.25 lbs


M18 FUEL QUIK-LOK articulating hedge trimmer attachment

  • Blade Length: 20 inch
  • Cut Capacity: 1 inch
  • Operating Positions: 13
  • SPM: 3,500
  • Length: 60 inch'
  • Tip guard to prevent damage to the blade and surrounding work area.
  • Optional 3 foot attachment extension will also be available for applications requiring further reach.
  • Weight: 5.8 lbs
